Food Grade Z Type Bucket Elevator System

Product Categories
Chang Hong Mining Machinery Co., Ltd.
Contact Now

Food Grade Z Type Bucket Elevator System

  • 1
  • 2

Brand Name : Changhong

Certification : ISO,SGS,SONCAP

Place of Origin : Hebei,China

MOQ : 1 set

Price : USD980-2500/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100sets/month

Delivery Time : 10-15 work days

Packaging Details : We use wooden cases or container packing to ensure safe transportation

Material : Stainless Steel,PP bucket and ss304 frame or carbon steel frame

Material feature : Heat Resistant,Oil Resistant,Rust-proof

Power(w) : As the model you choose

Condition : New

After-sales service provided : Video technical support

Dimension(l*w*h) : Customized Size

Warranty : 12 Months

Type : Bucket Conveyor,Gravity Conveyor

Load capacity : 50 TPh

Contact Now

304 Stainless Steel Z Type Bucket Conveyor


Application: Bucket Elevators are very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.

Food Grade Z Type Bucket Elevator System

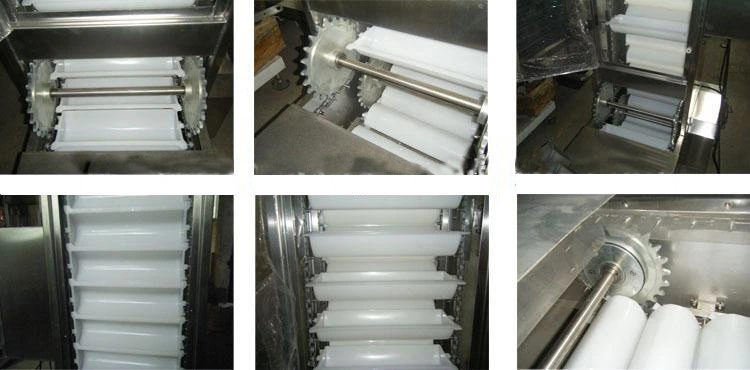

Features:
1. The buckets are made of a food grade reinforced polypropylene, molded in one piece and can handle temperatures from -10 to 120 degrees Fahrenheit.

2. Vertical conveyor for feeding dry products up vertically and discharging them into a hopper of either a multihead or a linear weigher.

3. All parts have easy to remove inspection covers and a conveniently located inspection window. The buckets have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tensioning device and built-in overload protection.

4. The geared reducer motor drived the machine have a stable performance prolong the machine life and easy to maintainance.

5. Optional:
Standard discharge height 3.25 Metres(10.66ft), heights customize available.
Stainless steel construction with optional painted version also available.
Discharge height and discharge positions can be built to clients requirements

Food Grade Z Type Bucket Elevator System
Food Grade Z Type Bucket Elevator System



Specifications
Name Bucket elevator
Bucket Volume 1L/1.8L/3.8L/6.5L
Machine structure #304 stainless steel or carbon steel.
Production capacity 2-3.5 / 4-6 / 6.5-8 / 8.5-12m3/H
Machine height 3896mm for standard (1.8L) or customization
Discharge height 3256mm for standard (1.8L) or customization
Hopper material Food grade PP/ABS
Power supply AC 220V Single phase / 380V, 3 Phase, 50Hz; 0.75kw
Packing Dimension 2050 (L)*1350 (W)*980mm (H) for standard (1.8L)

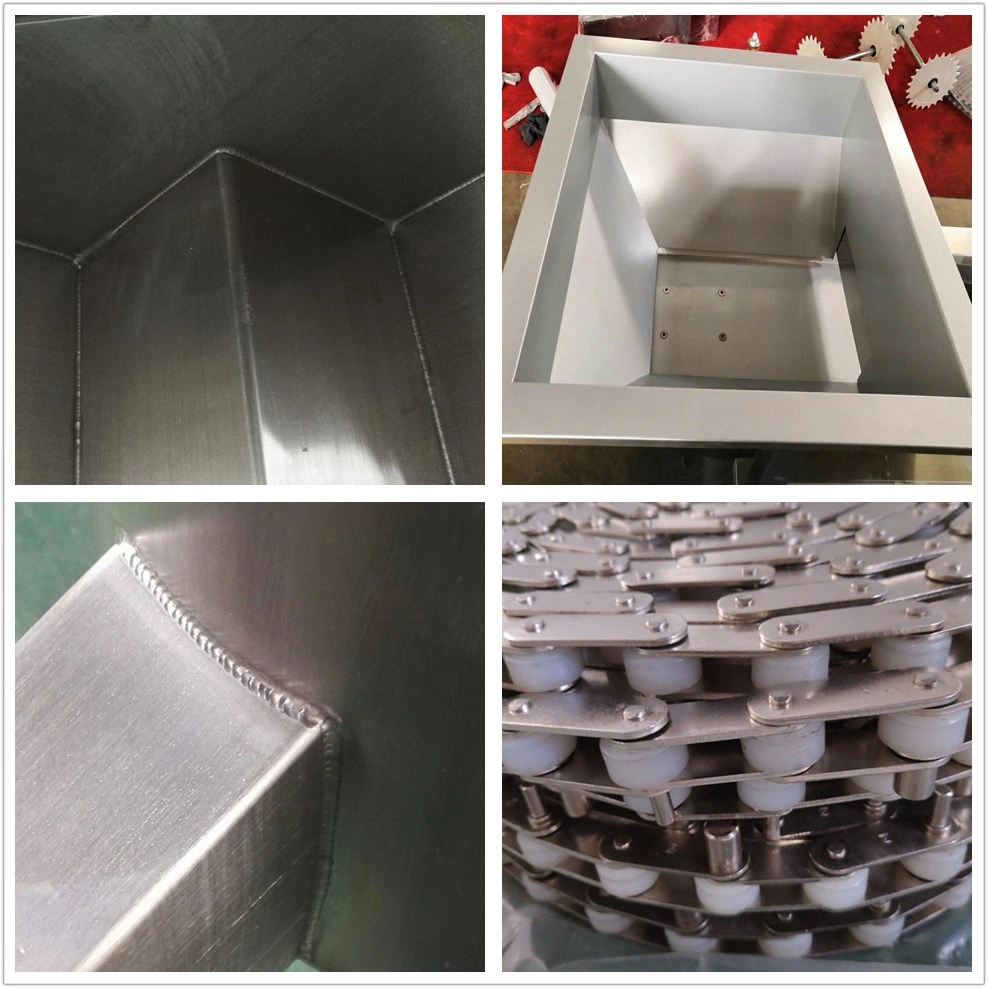

Cases we did
Food Grade Z Type Bucket Elevator System

About Shipping
Food Grade Z Type Bucket Elevator System


Our services
Pre-sales
1. Within 2 hours inquiry feedback between 8:00am--20:00pm
2. 24 hours technical proposal
3. Full assistance product selection
4. Free for designing and drawing
In-sales
1. 4 times producing feedback
2. Full supervision during production
3. 24 hours standby to make sure you can find us
4. Free installation and debugging before delivery
5. Free for training operator and mechanic
After-sales
1. At least 3 times following up
2. Email or online help after good arrived
3. Oversea installation and testing is available
4. Cost price for maintaining the machine and accessories beyond one year warranty.


FAQ
  1. Trade terms: EXWORK,FOB,CIF,CFR
  2. Payment terms : T/T 30% deposit, 70% balance before delivery
  3. Delivery Time : Usually 25-35 days, depends on different order quantity.
  4. Shippment : By sea, by air ,by railway or by truck, according to customer requirement
  5. Packing :Bubble film wrapping inside, Export Standard Plywood Case outside.
  6. Warranty :One year free for replacement of wearing parts, cost price beyond warranty
